Overview

MetaboLights WS3 is designed to address the latest goals and requirements of MetaboLights.

• Separation of Concerns: Each concern (presentation, business logic, and data access) should be clearly separated. Specifically, the business logic should remain independent of the details of data storage and management.
• Maintainability: The architecture must support long-term maintainability. This requires clearly defined layers that adhere to the principle of separation of concerns, avoiding framework-dependent or tightly coupled (“spaghetti”) code. Layer structures and their dependencies should be automatically validated to ensure architectural integrity.
• Framework Independence: The business logic layer must remain independent of external frameworks. This promotes flexibility, allowing frameworks to be upgraded or substituted with minimal impact on the rest of the system. In MetaboLights, reliance on specific frameworks and external services has historically led to major issues during application and infrastructure upgrades.
• Testability: The architecture should allow application configurations to be easily modified and support the execution of unit, integration, functional, and non-functional tests.
• Extensible: The architecture should be extensible, allowing new components or frameworks to be added with minimal effort.
• Flexible: The architecture should support the definition and execution of multiple application types—such as REST API servers and command-line interfaces—within a single codebase or repository.
• Scalable: Each application should operate as a stateless service that can be easily deployed within a containerized infrastructure.

Inspiration

MetaboLights WS3 is inspired from the following software principals, architectures and approaches:

• SOLID (Single-responsibility, Open-closed Principle, Liskov substitution, Interface segregation, Dependency inversion) Object Oriented Design Principles.
• Domain Driven Design (DDD)
• Command Query Responsibility Segregation (CQRS)
• Clean Architecture
• Onion Architecture
• Hexagonal / Port & Adaptor Architecture

MetaboLights WS3 Architecture

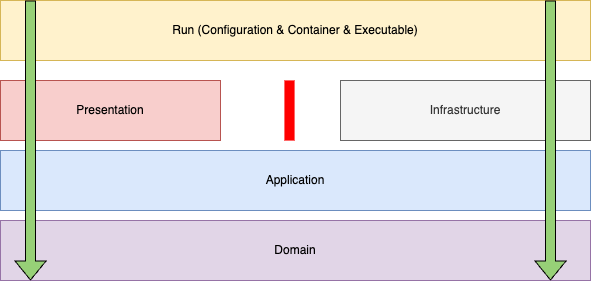

The MetaboLights WS3 architecture consists of four core layers — domain, application, presentation, and infrastructure — along with an additional run layer used to customize endpoints and executables. The layers and their dependency hierarchy are illustrated below.

General design principles

• Each layer can use the lower layer(s) but not higher layers. For example, infrastructure layer can import both application and domain layer modules, however application layer can only import modules from domain layer.
• infrastructure and presentation layers are on the same level and they are isolated. They do not import any modules from each other.
• All external services (e.g., external web services) and python package dependencies (postgresql, redis, elasticsearch, etc.) are isolated from application layer modules. Application modules only use interfaces. Interfaces are implemented in infrastructure layer. For example, CacheService interface in application layer can be implemented with different frameworks (RedisCache, InMemoryCache, RedisSentinelCache, etc.) in infrastructure.
• application layer modules do not know how domain entities are stored and managed (on NFS, SQL or NoSQL DB, Object Storage, etc.). They use only repository interfaces to process them.
• Only presentation layer modules will check authentication or authorization (Role based authentication and authorization). There will be no logic to check authentication or authorization in application or infrastructure layer modules (They may access authentication and authorization information in read-only mode).
• All application logic should be implemented in application layer (not in presentation or infrastructure layer).
• presentation layer modules should implement only RestAPI or CLI inputs and outputs (authentication and authorization). Any business logic should be moved to application and domain layer.
• Infrastructure layer modules should implement only application interfaces. For example, HttpClient interface has send_request method and HttpxClient in Infrastructure layer implements send_request method using httpx module.
• Do not use any external python package dependencies in domain or application layer (Exceptions: pydantic).
• dependency_injector containers will be defined for each executable (ws, ws_worker, cli, etc) in run layer.
• Prefer async coroutines for time consuming operations (external service calls, time consuming tasks etc.)

Layers and design principles

Domain layer

Domain layer contains only MetaboLights specific domain classes, enumerations, decorators, exceptions and basic utility methods.

• Domain layer imports only core Python packages and the following libraries:
• pydantic
• metabolights-utils
• Basic utility libraries: pyyaml, python-dateutil, pytz

Application layer

• Application layer imports only domain layer packages. The only exception is dependency_injector to define async tasks.

• All methods and classes in application layer use interfaces to access infrastructure components and services.

• Application layer modules do not import any external python libraries (e.g., celery, redis, sqlachemy, etc.). Instead of importing any external library, a new service or component can be implemented in infrastructure layer. To implement a new service or component:

• Define interfaces in application layer.

• Create any required domain objects in domain layer.
• Implement interfaces in infrastructure layer.

• Update dependency_injector container in run layer to use it.

• Initial interfaces in application layers are listed below:

• HttpClient

• AsyncTaskService
• AuthenticationService, AuthorizationService and IdentityService
• CacheService
• PolicyService

• StudyMetadataService

• Repositories are also defined as interfaces. e.g. Study, User, ValidationReport, ValidationOverride, StudyFile, etc. entity repositories.

• Application related logic is implemented in use_cases package. any module in use_cases package can import any other packages in application layer.

• All async tasks are implemented in remote_tasks package and they do not import use_cases modules.

You can find application layer packages and their dependency hierarchy below:

Presentation layer

• Presentation layer can imports application and domain layer packages. It may also import dependency_injector and presentation related libraries (e.g., FastAPI, click).
• Presentation layer do not import any infrastructure layer packages packages and modules.
• Rest API, CLI or other executable can be defined as a presentation.
• Rest API endpoints are defined within API groups and each API group will be managed with versions. Initial Rest API groups are submission,auth, curation, system, and public .
• Submission Rest API group: It provides endpoints to create and update MetaboLights submissions. Authentication is required to use endpoints.
• Curation Rest API group: It provides endpoints to run curation tasks on submitted studies and make them public. Authentication is required to use endpoints.
• Public Rest API group: It provides endpoints to access MetaboLights public studies and statistics.
• Auth Rest API group: It provides to endpoints to create and revoke API tokens (JWT tokens).
• System Rest API group: It provides to endpoints to MetaboLights sytem related endpoints (Private FTP accessibility, etc.).
• Only JWT token is used to authorize requests. Each user or service that wants to access any authorized endpoints should have a valid JWT token.
• Rest API authentication will be managed within authorization middleware.

Infrastructure layer

• Infrastructure layer modules can import application and domain layer modules, dependency_injector module and any external library (e.g., redis, slqalchemy, elasticsearch, celery, etc.).
• Infrastructure layer modules do not import any presentation layer modules.
• Multiple implementations can be defined for an interface defined in application layer. Each implementation is isolated from each others.
• Initial Service and repository implementations:
• AsyncTaskService: Celery and thread (for development) implementations
• AuthenticationService, AuthorizationService and IdentityService: mtbls_ws2 proxy and standalone implementations.
• CacheService: Redis, Redis sentinel and in-memory (for development) implementations
• PolicyService: Open policy agency (OPA) implementation
• StudyMetadataService: NFS and mongodb (in progress) implementations
• ValidationOverrideService, ValidationReportService: NFS and mongodb (in progress) implementations
• Repositories:
  • Study & User: postgresql and sqlite (for development) implementations
  • ValidationReport & ValidationOverride: NFS and mongodb (in progress)
  • InvestigationFileObject, IsaTableObject (SampleFile, AssayFile AssignmentFile): NFS and mongodb (in progress)
  • FileObject: to store data folder content. NFS (in progress) and mongodb (in progress)

Run layer

• Run layer defines dependency_injector container and runs an executable in presentation layer (submission API, submission API worker, CLI, etc.).
• Initial executables are:
• Submission Rest API: It uses celery async application, NFS and PostgreSQL based repositories, redis cache service and proxy authentication service.
• Submission Rest API Worker: Celery worker to run submission remote tasks
• Submission Rest API Worker Monitor: Flower executable to monitor celery tasks
• CLI: Initial commandline tool named mtbls-tools
• Log filters and application configuration files are customized depends on selected presentation layer application and service implementations.
• Unit tests overrides async task, auth, and cache services. Postgresql database is also overriden by Sqlite database to run unit tests.
